People Dwelling

Nodeflux People Dwelling is a Vision Artificial Intelligence Analytics Software that allows you to know the number of people in a particular area and how long they stay in the same position. This can be used to capture people's traffic, like at the front door, gate, elevator, lift, lobby, in front of shelves, etc. Using Nodeflux People Dwelling, organizations can seamlessly gather the number of visitors data, how long they stay at the same position and analyze their behaviour in each respective area.

How it Works

To verify that your camera can work with our People Dwelling analytic, try performing a test. Make sure that our analytic can detect people (you can see a bounding box around that person) and the bounding box can follow the person when they enter the ROI places.
Our model requires to detect a person with a height above 200 pixels on frame or the a quarter from the height of your display if the frame is 1080p. Less than that, the result might vary depending on how the person is visually presented.
Recommended person vs screen proportion

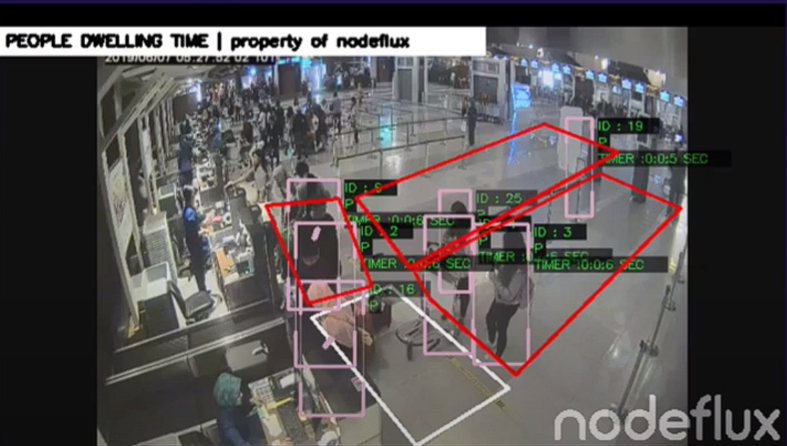

Sample View

View to Avoid

Please avoid a CCTV view when there are a lot of mannequins, banner/digital ads which shows a person or hanged clothes in monitored area to prevent false detection.

General Camera Placement

This is a general placement for most CCTV with this spec. Your camera configuration and placement might need some adjustment from the recommendation below:
